Titles & Footnotes • arframe

Titles

Each argument to fr_titles() is one title line, centered by default:

spec <- tbl_demog |>
  fr_table() |>
  fr_titles(
    "Table 14.1.1",
    "Demographics and Baseline Characteristics",
    "Intent-to-Treat Population"
  )
length(fr_get_titles(spec))
#> [1] 3

Calling fr_titles() again replaces all previous titles.

SAS: TITLE1 "Table 14.1.1"; TITLE2 "Demographics...";

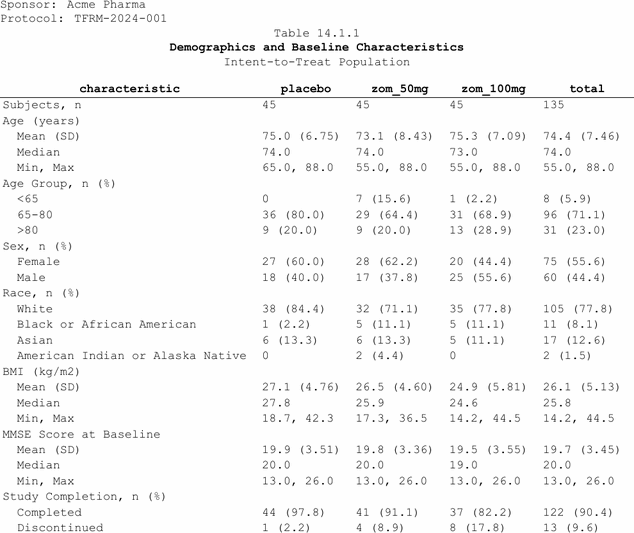

Styled titles

Pass a named list to control alignment and bold per line:

spec <- tbl_demog |>
  fr_table() |>
  fr_titles(
    list("Sponsor: Acme Pharma", align = "left"),
    list("Protocol: TFRM-2024-001", align = "left"),
    "Table 14.1.1",
    list("Demographics and Baseline Characteristics", bold = TRUE),
    "Intent-to-Treat Population"
  )
length(fr_get_titles(spec))
#> [1] 5

Sponsor: Acme Pharma

Protocol: TFRM-2024-001

Table 14.1.1

Demographics and Baseline Characteristics

Intent-to-Treat Population

characteristic	placebo	zom_50mg	zom_100mg	total	group
Subjects, n	45	45	45	135	n
Age (years)					age_cont
Mean (SD)	75.0 (6.75)	73.1 (8.43)	75.3 (7.09)	74.4 (7.46)	age_cont
Median	74.0	74.0	73.0	74.0	age_cont
Min, Max	65.0, 88.0	55.0, 88.0	55.0, 88.0	55.0, 88.0	age_cont
Age Group, n (%)					age_cat
<65	0	7 (15.6)	1 (2.2)	8 (5.9)	age_cat
65-80	36 (80.0)	29 (64.4)	31 (68.9)	96 (71.1)	age_cat
>80	9 (20.0)	9 (20.0)	13 (28.9)	31 (23.0)	age_cat
Sex, n (%)					sex
Female	27 (60.0)	28 (62.2)	20 (44.4)	75 (55.6)	sex
Male	18 (40.0)	17 (37.8)	25 (55.6)	60 (44.4)	sex
Race, n (%)					race
White	38 (84.4)	32 (71.1)	35 (77.8)	105 (77.8)	race
Black or African American	1 (2.2)	5 (11.1)	5 (11.1)	11 (8.1)	race
Asian	6 (13.3)	6 (13.3)	5 (11.1)	17 (12.6)	race
American Indian or Alaska Native	0	2 (4.4)	0	2 (1.5)	race
BMI (kg/m2)					bmi
Mean (SD)	27.1 (4.76)	26.5 (4.60)	24.9 (5.81)	26.1 (5.13)	bmi
Median	27.8	25.9	24.6	25.8	bmi
Min, Max	18.7, 42.3	17.3, 36.5	14.2, 44.5	14.2, 44.5	bmi
MMSE Score at Baseline					mmse
Mean (SD)	19.9 (3.51)	19.8 (3.36)	19.5 (3.55)	19.7 (3.45)	mmse
Median	20.0	20.0	19.0	20.0	mmse
Min, Max	13.0, 26.0	13.0, 26.0	13.0, 26.0	13.0, 26.0	mmse
Study Completion, n (%)					completion
Completed	44 (97.8)	41 (91.1)	37 (82.2)	122 (90.4)	completion
Discontinued	1 (2.2)	4 (8.9)	8 (17.8)	13 (9.6)	completion

/tmp/RtmpKCCmfM/callr-scr-6801c24cec667 01APR2026 11:29:52

List fields: align ("left", "center", "right"), bold (logical), font_size (numeric).

Default styling

.align and .bold set defaults for all lines:

spec <- tbl_demog |>
  fr_table() |>
  fr_titles(
    "Table 14.1.1",
    "Demographics and Baseline Characteristics",
    .bold = TRUE, .align = "center"
  )
fr_get_titles(spec)[[1]]$bold
#> [1] TRUE

Footnotes

spec <- tbl_demog |>
  fr_table() |>
  fr_footnotes(
    "Percentages based on number of subjects per treatment group.",
    "MMSE = Mini-Mental State Examination.",
    .separator = FALSE
  )
length(fr_get_footnotes(spec))
#> [1] 2

Option	Default	Description
`.separator`	`FALSE`	Draw a horizontal separator rule above footnotes
`.placement`	`"every"`	`"last"` = last page only (PDF only; RTF repeats all)
`.align`	`"left"`	Footnote text alignment

SAS: FOOTNOTE1 "Percentages...";

Inline markup

Use {fr_*()} expressions inside any text string — titles, footnotes, column labels, data cells:

spec <- tbl_demog |>
  fr_table() |>
  fr_footnotes(
    "{fr_super('a')} Fisher's exact test.",
    "{fr_super('b')} Cochran-Mantel-Haenszel test.",
    "BMI = Body Mass Index (kg/m{fr_super(2)})."
  )
fr_get_footnotes(spec)[[3]]$content
#> [1] "BMI = Body Mass Index (kg/m\001SUPER:2\002)."

Markup reference

Function	Output	Use case
`fr_super(x)`	Superscript	Footnote markers, units (`"m{fr_super(2)}"`)
`fr_sub(x)`	Subscript	Chemical formulas (`"H{fr_sub(2)}O"`)
`fr_bold(x)`	Bold	Inline emphasis (`"{fr_bold('Total')} Subjects"`)
`fr_italic(x)`	Italic	P-value annotations (`"{fr_italic('P')}-value"`)
`fr_underline(x)`	Underline	Highlighting (`"{fr_underline('CONFIDENTIAL')}"`)
`fr_newline()`	Line break	Multi-line cells (`"Treatment{fr_newline()}Arm"`)
`fr_dagger()`	Dagger (U+2020)	Treatment-related AE markers
`fr_ddagger()`	Double dagger (U+2021)	Serious AE markers
`fr_emdash()`	Em dash (U+2014)	Title clauses (`"Safety {fr_emdash()} FAS"`)
`fr_endash()`	En dash (U+2013)	Numeric ranges (`"18{fr_endash()}65 years"`)
`fr_unicode(code)`	Unicode char	Plus-minus (`fr_unicode(0x00B1)`), degree, etc.

Markup in column labels

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    placebo = fr_col("{fr_bold('Placebo')}")
  )

Markup in data cells

Markup works anywhere a string appears, including the data itself:

d <- data.frame(stat = "P{fr_super('a')}-value", val = "<0.001",
                stringsAsFactors = FALSE)
spec <- d |>
  fr_table() |>
  fr_cols(
    stat = fr_col("Statistic", width = 2),
    val  = fr_col("Result", width = 1.5)
  )

The sentinel tokens survive paste(), sprintf(), and glue() — they are resolved per-backend at render time.
