Columns & Headers

fr_cols() defines what columns look like. fr_header() styles the header row. Together they control labels, widths, alignment, N-counts, and header presentation.

Defining columns

Each named argument to fr_cols() is an fr_col() spec:

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    characteristic = fr_col("Characteristic", width = 2.5),
    placebo        = fr_col("Placebo", align = "right"),
    zom_50mg       = fr_col("Zomerane 50mg", align = "right"),
    zom_100mg      = fr_col("Zomerane 100mg", align = "right"),
    total          = fr_col("Total", align = "right"),
    group          = fr_col(visible = FALSE)
  )
names(fr_get_columns(spec))
#> [1] "characteristic" "placebo"        "zom_50mg"       "zom_100mg"
#> [5] "total"          "group"

Columns you don’t mention get auto-generated defaults. Set visible = FALSE to keep a column for logic (grouping, indentation) without rendering it.

`fr_col()` parameters

Parameter	Default	Description
`label`	`""` (falls back to column name)	Display header text
`width`	`NULL`	Inches, `"auto"`, `"25%"`, or `NULL` (inherits `.width`)
`align`	`NULL`	`"left"`, `"right"`, `"center"`, `"decimal"`, or `NULL` (auto-detect)
`header_align`	`NULL`	Header cell alignment override (inherits `align`)
`visible`	`NULL`	`FALSE` hides from output; `NULL` = system decides

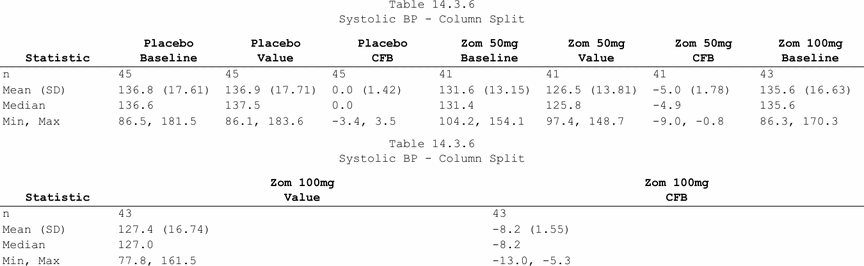

`stub`	`FALSE`	Repeats in every col_split panel
`n`	`NULL`	Per-column N-count (overrides `.n`)
`spaces`	`NULL`	`"indent"` or `"preserve"` for leading spaces
`group`	`NULL`	Spanning header group name (auto-creates a span via `fr_spans()`)

SAS: DEFINE col / DISPLAY "Label" STYLE(column)=[width=2.5in just=right];

Width modes

The .width argument to fr_cols() controls the global width strategy:

fr_cols(.width = NULL, ...)     # Same as "auto": estimate from content using font metrics
fr_cols(.width = "auto", ...)   # Estimate from content using font metrics
fr_cols(.width = "fit", ...)    # Auto + scale to fill the page
fr_cols(.width = "equal", ...)  # Divide page equally among unfixed columns

Percentage widths work per-column:

spec <- data.frame(a = 1) |>
  fr_table() |>
  fr_cols(a = fr_col("Alpha", width = "25%"))
fr_get_col(spec, "a")$width
#> [1] 0.25
#> attr(,"class")
#> [1] "fr_pct"

For most pharma tables, "fit" or explicit inch widths work best.

Decimal alignment

Clinical tables display mixed statistics in the same column. align = "decimal" auto-detects the stat type and aligns decimal points:

decimal_data <- data.frame(
  stat  = c("n", "Mean (SD)", "Median", "Min, Max", "p-value"),
  value = c("45", "68.2 (7.1)", "68.0", "52, 84", "<0.001"),
  stringsAsFactors = FALSE
)
spec <- decimal_data |>
  fr_table() |>
  fr_cols(
    stat  = fr_col("Statistic", width = 1.5),
    value = fr_col("Value", width = 2.0, align = "decimal")
  )

Decimal-aligned mixed statistics (counts, means, ranges, p-values)

The engine recognises counts, floats, n (%), n/N (%), estimates with spreads, CIs, range pairs, p-values, and missing values.

Tidyselect formula syntax

Instead of naming every column individually, you can use a formula selector ~ fr_col(...) to apply the same spec to multiple columns at once. The left-hand side is any tidyselect expression; the right-hand side is the fr_col() to apply:

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    characteristic = fr_col("Characteristic", width = 2.5),
    starts_with("zom") ~ fr_col(width = 1.5, align = "right"),
    placebo = fr_col("Placebo", width = 1.5, align = "right"),
    total   = fr_col("Total",   width = 1.5, align = "right"),
    group   = fr_col(visible = FALSE)
  )
names(fr_get_columns(spec))
#> [1] "characteristic" "placebo"        "zom_50mg"       "zom_100mg"
#> [5] "total"          "group"

Formulas and named arguments can be mixed freely in the same call. Named arguments take precedence over formulas when the same column is matched by both.

Hidden columns and label functions

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    .label_fn = function(x) gsub("_", " ", tools::toTitleCase(x)),
    group = fr_col(visible = FALSE)
  )
fr_get_columns(spec)$characteristic$label
#> [1] "Characteristic"

`fr_col(group=)` — auto-span shorthand

Setting group = "label" on an fr_col() is a compact alternative to calling fr_spans() separately. Columns that share the same group string are automatically grouped under a spanning header with that label:

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    characteristic = fr_col("Characteristic", width = 2.5),
    zom_50mg       = fr_col("50 mg",  width = 1.5, align = "right", group = "Zomerane"),
    zom_100mg      = fr_col("100 mg", width = 1.5, align = "right", group = "Zomerane"),
    placebo        = fr_col("Placebo", width = 1.5, align = "right"),
    total          = fr_col("Total",   width = 1.5, align = "right"),
    group          = fr_col(visible = FALSE)
  )

This is equivalent to adding fr_spans("Zomerane" = c("zom_50mg", "zom_100mg")) after fr_cols(). You can still supply .n and .n_format at the same time — group names are matched by the N-count auto-routing logic, so the N appears on the span:

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    characteristic = fr_col("Characteristic", width = 2.5),
    zom_50mg       = fr_col("50 mg",  width = 1.5, align = "right", group = "Zomerane"),
    zom_100mg      = fr_col("100 mg", width = 1.5, align = "right", group = "Zomerane"),
    placebo        = fr_col("Placebo", width = 1.5, align = "right"),
    total          = fr_col("Total",   width = 1.5, align = "right"),
    group          = fr_col(visible = FALSE),
    .n = c(Zomerane = 90, placebo = 45, total = 135),
    .n_format = "{label}\n(N={n})"
  ) |>
  fr_header(bold = TRUE, align = "center")

Use group= when you are already naming every column in fr_cols() and want to avoid a separate fr_spans() call. Use fr_spans() directly when you prefer tidyselect column selection, multi-level spans, or fine-grained control over .hline and .gap.

Header styling

fr_header() controls header presentation — bold, alignment, colors, font size. It does not handle N-counts (those go on fr_cols()).

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    characteristic = fr_col("", width = 2.5),
    placebo   = fr_col("Placebo"),
    zom_50mg  = fr_col("Zomerane 50mg"),
    zom_100mg = fr_col("Zomerane 100mg"),
    total     = fr_col("Total"),
    group     = fr_col(visible = FALSE)
  ) |>
  fr_header(bold = TRUE, align = "center")

fr_header() parameters: align, valign ("top" / "middle" / "bottom"), bold, bg, fg, font_size, repeat_on_page (default TRUE — set FALSE to print the header only on the first page).

Tidyselect alignment

Target different columns with different alignments:

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    characteristic = fr_col("", width = 2.5),
    placebo   = fr_col("Placebo"),
    zom_50mg  = fr_col("Zomerane 50mg"),
    zom_100mg = fr_col("Zomerane 100mg"),
    total     = fr_col("Total"),
    group     = fr_col(visible = FALSE)
  ) |>
  fr_header(bold = TRUE, align = list(
    left   = "characteristic",
    center = c(starts_with("zom"), "placebo", "total")
  ))

SAS: STYLE(header)=[just=center font_weight=bold];

N-counts

N-counts go on fr_cols(.n = ..., .n_format = ...). Names are matched case-insensitively — first by column display label, then by data column name as fallback. Use column names to avoid repeating labels:

Named vector (most common)

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    characteristic = fr_col("", width = 2.5),
    placebo   = fr_col("Placebo"),
    zom_50mg  = fr_col("Zomerane 50mg"),
    zom_100mg = fr_col("Zomerane 100mg"),
    total     = fr_col("Total"),
    group     = fr_col(visible = FALSE),
    .n = c(placebo = 45, zom_50mg = 45, zom_100mg = 45, total = 135),
    .n_format = "{label}\n(N={n})"
  ) |>
  fr_header(bold = TRUE, align = "center")

The .n_format template has two tokens: {label} (display label) and {n} (count). Column header becomes "Placebo\n(N=45)".

Tip: In study programs, set .n_format and fr_header() once via fr_theme(n_format = ..., header = list(bold = TRUE, align = "center")) so you never repeat them per-table. See Automation & Batch.

Named list (per-page N-counts)

When page_by splits the table, N-counts may differ per page:

fr_cols(
  ...,
  .n = list(
    "Systolic BP (mmHg)"  = c(placebo = 42, zom_50mg = 44, zom_100mg = 43),
    "Diastolic BP (mmHg)" = c(placebo = 42, zom_50mg = 44, zom_100mg = 43)
  ),
  .n_format = "{label}\n(N={n})"
)

Data frame (dynamic counting)

Pre-compute N-counts and pass as a data frame. A 2-column data frame (treatment + count) gives the same N on every page. A 3-column data frame (page_by group + treatment + count) gives per-page N-counts:

# 2-column: global N (same on every page)
n_global <- data.frame(
  trt = c("Placebo", "Zomerane 50mg"),
  n   = c(45, 44)
)
fr_cols(..., .n = n_global, .n_format = "{label}\n(N={n})")

# 3-column: per-page N (for page_by tables)
n_per_page <- aggregate(
  USUBJID ~ PARAM + TRTA, data = advs[advs$AVISIT == "Baseline", ],
  FUN = function(x) length(unique(x))
)
fr_cols(..., .n = n_per_page, .n_format = "{label}\n(N={n})")

Per-column N

fr_col(n = ...) overrides .n for a specific column:

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    characteristic = fr_col("Characteristic", width = 2.5),
    zom_50mg  = fr_col("Zomerane 50 mg", n = 45),
    placebo   = fr_col("Placebo", n = 45),
    .n_format = "{label}\n(N={n})"
  ) |>
  fr_header(bold = TRUE, align = "center")

Choosing the right form

Form	Best for
Named vector (`.n = c(...)`)	Fixed N per arm (demographics, disposition)
Named list (`.n = list(...)`)	Known per-page N (multi-parameter tables)
Data frame (2-col)	Dynamic N from external data (global)
Data frame (3-col)	Dynamic per-page N from external data
`fr_col(n = ...)`	Override one column

SAS: This replaces PROC FREQ + PROC TRANSPOSE to build N headers, then manual COMPUTE blocks to attach them. arframe does it in one fr_cols() call.

Spanning headers with `fr_spans()`

Spanning headers are additional header rows that sit above the regular column labels, grouping related columns under a shared label. They are the standard way to show treatment arms, dose groups, or timepoint periods in regulatory tables.

fr_spans() appends spans to the spec (unlike most verbs which replace). Call it multiple times to build up multi-level structures.

Basic single-level span

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    characteristic = fr_col("Characteristic", width = 2.5),
    zom_50mg       = fr_col("50 mg",  width = 1.5, align = "right"),
    zom_100mg      = fr_col("100 mg", width = 1.5, align = "right"),
    placebo        = fr_col("Placebo", width = 1.5, align = "right"),
    total          = fr_col("Total",   width = 1.5, align = "right"),
    group          = fr_col(visible = FALSE),
    .n = c(zom_50mg = 45, zom_100mg = 45, placebo = 45, total = 135),
    .n_format = "{label}\n(N={n})"
  ) |>
  fr_header(bold = TRUE, align = "center") |>
  fr_spans("Zomerane" = c("zom_50mg", "zom_100mg"))

Single-level spanning header grouping two dose arms under ‘Zomerane’

The span label (“Zomerane”) sits above the two Zomerane columns. Columns not covered by any span (placebo, total) display an empty cell in the span row.

Multi-level spans (`.level`)

Build from inner to outer. Level 1 sits directly above the column labels; level 2 sits above level 1:

dose_data <- data.frame(
  param    = "Weight",
  low_n    = "43", low_pct  = "31.9%",
  high_n   = "47", high_pct = "34.8%",
  stringsAsFactors = FALSE
)
spec <- dose_data |>
  fr_table() |>
  fr_cols(
    param    = fr_col(visible = FALSE),
    low_n    = fr_col("n",   width = 1.0, align = "right"),
    low_pct  = fr_col("%",   width = 1.0, align = "right"),
    high_n   = fr_col("n",   width = 1.0, align = "right"),
    high_pct = fr_col("%",   width = 1.0, align = "right")
  ) |>
  fr_spans("10 mg"    = c("low_n",  "low_pct"),  .level = 1L) |>
  fr_spans("25 mg"    = c("high_n", "high_pct"), .level = 1L) |>
  fr_spans("Zomerane" = c("low_n", "low_pct", "high_n", "high_pct"), .level = 2L)

Each fr_spans() call at .level = 1L places “10 mg” and “25 mg” above their respective column pairs. The second-level call places “Zomerane” above both level-1 spans.

`.hline` — span underline

By default a thin horizontal line is drawn under each span to visually separate it from the column labels below. Set .hline = FALSE to suppress it:

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    characteristic = fr_col("Characteristic", width = 2.5),
    zom_50mg       = fr_col("50 mg",  width = 1.5, align = "right"),
    zom_100mg      = fr_col("100 mg", width = 1.5, align = "right"),
    placebo        = fr_col("Placebo", width = 1.5, align = "right"),
    total          = fr_col("Total",   width = 1.5, align = "right"),
    group          = fr_col(visible = FALSE)
  ) |>
  fr_spans("Zomerane" = c("zom_50mg", "zom_100mg"), .hline = FALSE)

`.gap` — gap columns between adjacent spans

When two or more spans sit side by side at the same level, fr_spans() inserts a narrow invisible gap column between them by default (.gap = TRUE). This creates a clean visual break without relying on border trimming. Set .gap = FALSE to remove the gap and produce a continuous span hline:

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    characteristic = fr_col("Characteristic", width = 2.5),
    zom_50mg       = fr_col("50 mg",  width = 1.5, align = "right"),
    zom_100mg      = fr_col("100 mg", width = 1.5, align = "right"),
    placebo        = fr_col("Placebo", width = 1.5, align = "right"),
    total          = fr_col("Total",   width = 1.5, align = "right"),
    group          = fr_col(visible = FALSE)
  ) |>
  fr_spans(
    "Zomerane"  = c("zom_50mg", "zom_100mg"),
    "Reference" = "placebo",
    .gap = FALSE
  )

Tidyselect in span column selection

The column list on the right-hand side of each named argument accepts tidyselect expressions as well as character vectors:

spec <- tbl_demog |>
  fr_table() |>
  fr_cols(
    characteristic = fr_col("Characteristic", width = 2.5),
    zom_50mg       = fr_col("50 mg",  width = 1.5, align = "right"),
    zom_100mg      = fr_col("100 mg", width = 1.5, align = "right"),
    placebo        = fr_col("Placebo", width = 1.5, align = "right"),
    total          = fr_col("Total",   width = 1.5, align = "right"),
    group          = fr_col(visible = FALSE)
  ) |>
  fr_spans("Zomerane" = starts_with("zom_"))

Supported helpers include starts_with(), ends_with(), contains(), matches(), and any other tidyselect expression.

Choosing between `fr_col(group=)` and `fr_spans()`

Approach	When to use
`fr_col(group = "label")`	Inline shorthand; you are already naming every column in `fr_cols()`
`fr_spans("label" = ...)`	Multi-level spans, tidyselect selection, or fine-grained `.hline`/`.gap` control

SAS: Spanning headers require a COMPUTE block in PROC REPORT with STYLE(SPANNING). arframe handles all positioning automatically from a single fr_spans() call.

Column splitting

When a table has too many columns for one page, .split = TRUE creates panels with stub columns repeating in each:

spec <- tbl_vs[tbl_vs$timepoint == "Week 24" &
                tbl_vs$param == "Systolic BP (mmHg)", ] |>
  fr_table() |>
  fr_cols(
    param     = fr_col(visible = FALSE),
    timepoint = fr_col(visible = FALSE),
    statistic = fr_col("Statistic", width = 1.2, stub = TRUE),
    placebo_base  = fr_col("Placebo\nBaseline", width = 1.0),
    placebo_value = fr_col("Placebo\nValue", width = 1.0),
    placebo_chg   = fr_col("Placebo\nCFB", width = 1.0),
    zom_50mg_base  = fr_col("Zom 50mg\nBaseline", width = 1.0),
    zom_50mg_value = fr_col("Zom 50mg\nValue", width = 1.0),
    zom_50mg_chg   = fr_col("Zom 50mg\nCFB", width = 1.0),
    zom_100mg_base  = fr_col("Zom 100mg\nBaseline", width = 1.0),
    zom_100mg_value = fr_col("Zom 100mg\nValue", width = 1.0),
    zom_100mg_chg   = fr_col("Zom 100mg\nCFB", width = 1.0),
    .split = TRUE, .width = "fit"
  )

Column split panels with stub column repeating

stub = TRUE columns repeat in every panel. .width = "fit" scales each panel to fill the page.
